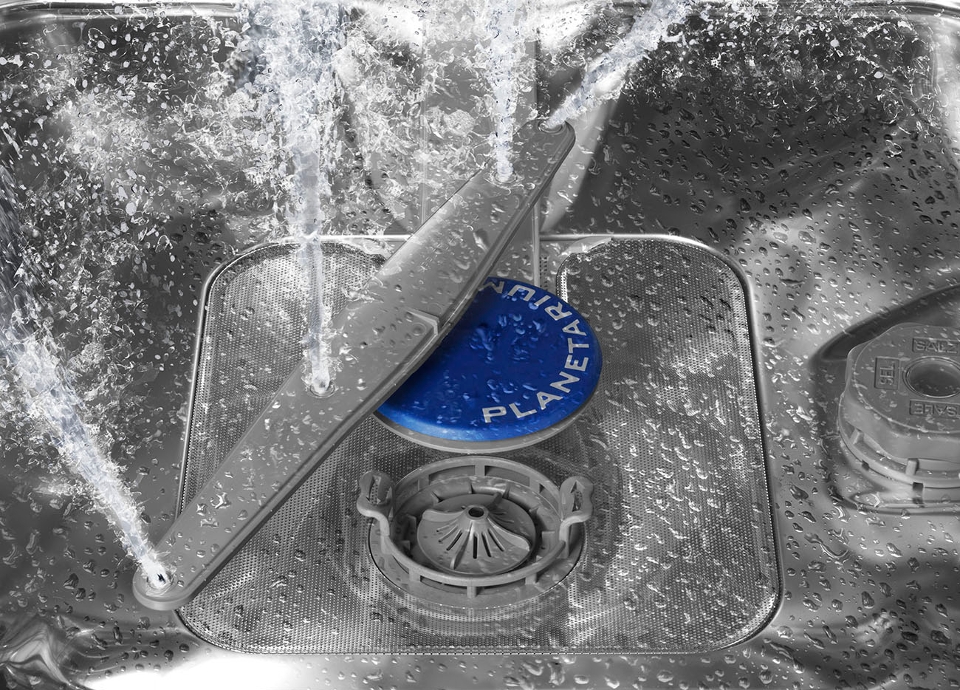

PLANETARIUM WASH SYSTEM

The Planetarium wash system, patented by Smeg, ensures maximum wash coverage in the dishwasher thanks to the innovative double simultaneous motion of the spray arm.

With each revolution, the main arm turns clockwise, making a planetary movement around one axis while at the same time, the stem of the arm moves in the opposite direction, operating on a second axis. This spiralising directional wash sprays the water evenly in a 360° sweep. The rotation speed is approximately 65rpm, ensuring the best available wash results.

Complex as the engineering is, the result is simple – sparkling dishes every time without missing a spot!

FLEXIDUO CUTLERY BASKET

The third cutlery basket; the Smeg Flexi Duo, consists of 2 separate and movable sections which can be adjusted individually or even removed entirely depending on your loading needs. An intelligent solution that makes room for tall glasses below or deep utensils above.

Dry assist

At the end of the drying cycle a special device automatically opens the door a few drying centimetres to ensure perfect drying . This can save up to 20% of energy compared to Class A, by automatically opening the door there is less need for the heater element to continue to get the desired drying result.

Half load

The ½ load FlexiZone allows you to wash a reduced load saving energy, water and time and there are no restrictions on where the items have to be placed.

Aquastop

Total aquastop is an electronic device fitted to the water intake hose and the base of the machine, which monitors water levels in the machine, detects leaks in the hose and switches off the water supply immediately directly from the source when necessary, preventing water spillages onto the floor.

Delay timer

A delay timer can be set to run the program at a convenient time or to take advantage of off-peak energy periods.

Aesthetics

Aesthetics: Universal

Colour: Silver

Finishing: Silver

Front panel colour: Silver (oropal grey)

Door type: Silver (oropal)

LED/display colour: White and blue

Button colour: Silver (oropal grey)

Type

Product Family: Dishwashers

Commercial height: 82 cm

Number of place settings: 14

Installation: Fully-integrated built-in

Width: 60 cm

EAN code: 8017709307363

Kitchen panel: Not supplied

Technical Features

Auto switch-off: Yes

Controls: Electronic

Display: Delayed start, Programme time indicator

Door opening system: Yes

Display type: 3 digit

On/off indicator: Yes

Salt light indicator: Light

Rinse aid indicator: Light

End of cycle indicator: ActiveLight

Washing system: Planetarium

Drying system: Natural condenser drying, with Dry Assist + automatic door opening system at the end of the cycle

Motor: Inverter 2.0

Third spray arm: Single

Water softener: With electronic setting

Turbidity sensor Aquatest: Yes

Flood protection system: Total Acquastop

Water supply: Single; cold/hot water max. 60°C - energysave with hot water up to 35%

Max water hardness: 100°fH;58°dH

Steam protection: In plastic

Tank material: Stainless steel

Filter: Stainless steel

Concealed heating element: Yes

Min. and max plinth height: 50 - 215 mm

Min. and max. frontal panel weight: 2 - 11 kg

Hinges: Self balancing, Sliding, FLEXIFIT

Adjustable feet: 7cm, from 820 to 890 mm

Back feet adjustable from front: Yes

Professional programs

Ultra rapid: Yes

Full express PRO: Yes

Intensive Pro: Yes

Mix PRO: Yes

Crystal Pro: Yes

Programmes

No. of programmes: 10+1

Soak: Yes

Full express - 60 minutes: Yes

ECO: Yes

Auto sensor 45-65: Yes

Mix: Yes

Intense: Yes

Hygiene 99,9%: Yes

Self clean: Yes

Ultra Express: Yes

Crystal: Yes

Washing temperatures: 45, 50, 65, 70, 75 °C

Options

Dry Assist+ option: Yes

Delay timer option: Up to 24 hours, with automatic soak

1/2 load FlexiZone option (varied distribution): Yes

Professional option: Yes

Baskets

N° baskets: 3, FlexiDuo

Basket colour: Grey

Basket components colour: Grey

Handle: In plastic with stainless steel insert on upper and lower basket

Upper Basket: With 3 foldable racks

Glass holder: Yes

Height adjustment of the upper basket: On three levels

Sliding Guides Extra Glide: Yes

Lower Basket: With 4 foldable racks

Largest loadable dish in upper basket: 19,0 cm

Lower basket with anti-drip inserts: Yes

Largest loadable dish in lower basket: 30,0 cm

Colour Inner Components: Blue

Performance / Energy Label

Energy Efficiency Class (Washing cycle): C

Energy consumption [per 100 cycles, based on the eco programme]: 75 kWh

Rated capacity (ps): 14

Water consumption [per cycle]: 10.5 litres

Programme duration: 4:25 h:min

Airborne acoustical noise emissions (spinning phase): 42 dB(A) re 1 pW

Airborne acoustical noise emission class: B

Energy efficiency Index (EEI) (Washing cycle): 43.8

Electrical Connection

Connected power: 5450 W

Current: 32 A

Voltage: 220-240 V

Type of connection: Single-phase

Frequency (Hz): 50 Hz

Plug: No

Power supply cable length: 200 cm

Features attributes

Noise level: 40 - 44 dB(A)

Logistic Information

Dimensions of the product HxWxD (mm): 818x598x545 mm

Net weight (kg): 46.000 kg

Gross weight (kg): 49.000 kg

Country of origin: IT

Packed width: 650 mm

Packaged depth: 670 mm

Height (mm) packed: 890 mm

Dimensions of the packed product (mm): 890x650x670 mm

Maximum stackability: 5

Type of packaging: Cardboard

Packaging composition - paper & cardboard (kg): 1.883 kg

Packaging composition - polystyrene (kg): 0.495 kg

Packaging composition - wood (kg): 0.205 kg

Packaging composition - plastic (kg): 0.151 kg

Other accessories: Salt funel
