Professional Convection oven with humidification
4 trays EN 600x400 mm, GN1/1 (min. H 20 mm)
Electric power supply
4 trays EN 600x400 mm, GN1/1 (min. H 20 mm)
Electric power supply
Designed to deliver flawless browning, thanks to precise, uniform, and repeatable cooking processes that ensure excellent results with every bake.

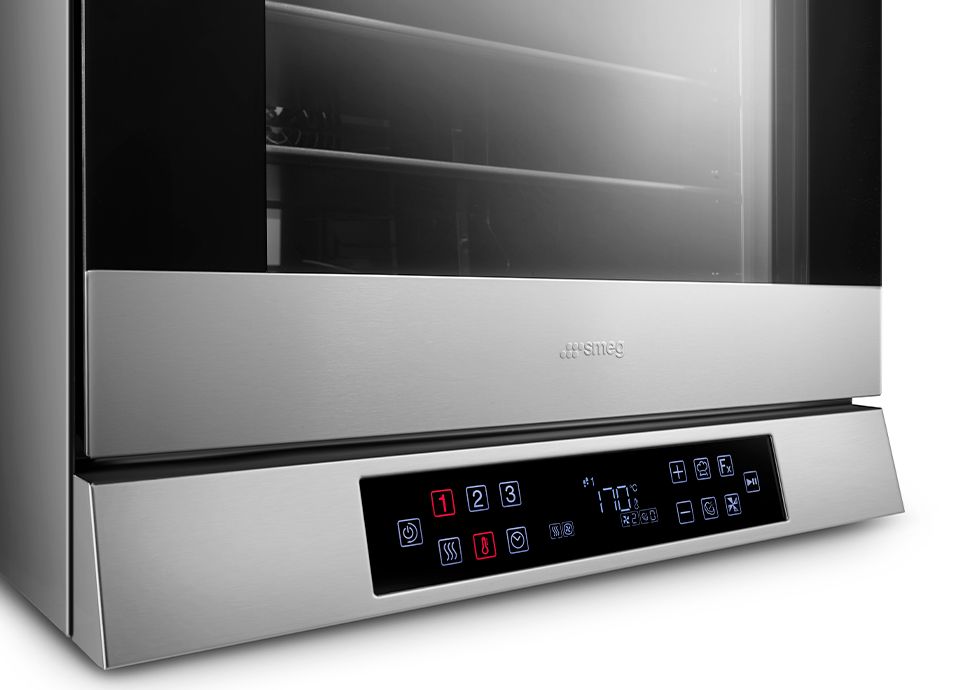

- Intuitive interface for simple and precise adjustment of cooking parameters - LCD Touch
- Perfect ventilation for the ideal cooking of the most delicate dishes - Two-speed fan
- Impeccable cooking thanks to precise humidity control - Humidity management
- Flexibility and precision in every cooking stage - 3 cooking stages

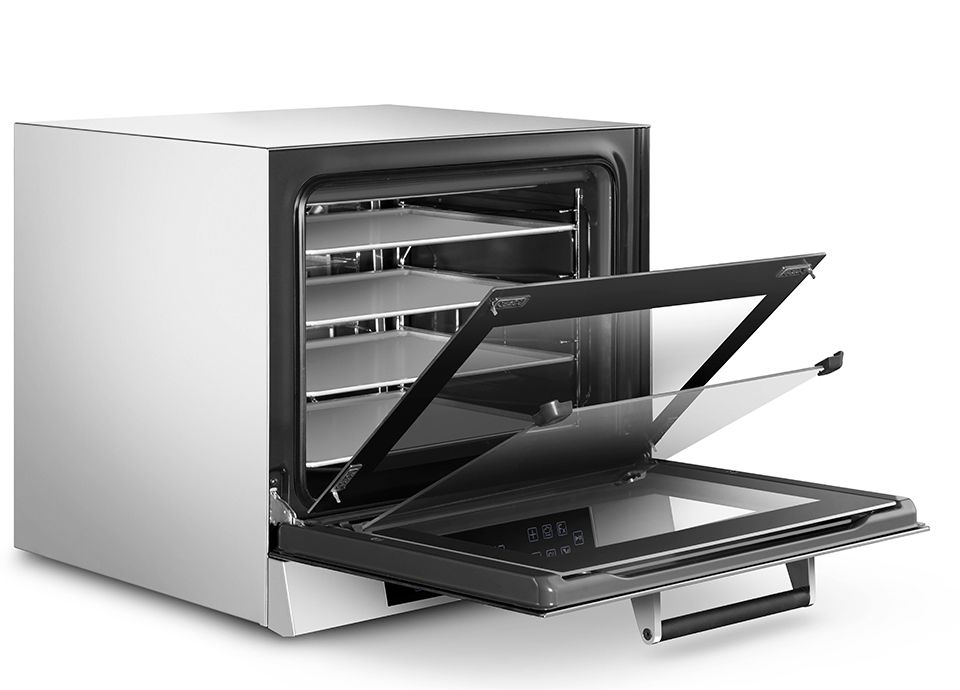

- Easily accessible glass for effortless maintenance and cleaning - Clip-open
General data

Family:
Professional ovens
Subfamily:
Convection oven 4 trays EN 600x400 mm or GN1/1
Power supply:
Electric
Oven type:
Convection oven with humidification
Oven control:
Electronic
Trays capacity:
4 trays EN 600x400 mm, GN1/1 (min. H 20 mm)
Power supply:
400 V 3N~ / 10 A / 6,9 kW / 50-60 Hz
Other electrical connection:
230 V~ / 30 A / 6,9 kW / 50-60 Hz
Program storage with application:
Not available
Humidity generation:
Direct in cavity
Adjustable feet:
Yes
Product dimensions WxDxH:
798x747x563 mm
Maximum depth with open door:
1145 mm
Target
Suggested for:
Bakery
Industries:
Bar / Cafeterias / Bistros / Wine bars / Pubs; Hotels; Restaurants; Bakeries / Pastry shops; Butcher shops / Delicatessens; Catering; Care facilities ; Commercial food services; Grocery shops / Food retail
Aesthetics
Colour:
Stainless steel
Series:
Alfa
Door with stainless steel stripes:
Yes
Display type:
LCD Touch
Digit display color:
White
Front panel:
Yes
Type
Marketing title:
Convection oven with humidification
Program / Functions





HACCP data:
Yes
Backing functions:
Convection, Convection with humidification, Core probe, Delta T
Adjustable fan speed:
2 Speeds
Technical Features
Water inlet pressure:
50-500 kPa (min-max)
Circular heating element - Power:
3200 W
Controls
Storable programs number:
100
Timer setting range:
1-99 minutes + endless
Cooking steps:
3 + pre-heating
Pre-heating:
Yes
Delayed start:
Yes
Chimney regulation:
Yes
Options
Combinable hood:
K4610X
Construction
Oven materials:
Stainless steel / glass / plastics
Cavity dimensions (WxDxH):
672x437x340 mm
Internal net volume:
75 lt
Cavity material:
Stainless steel
Shelves number:
4
Tray frame support:
Chromed wire
Shelves distance:
77 mm GN1/1 - EN 600X400
Door construction:
Double glass
Door opening:
Tilting
Glass:
Openable with clip

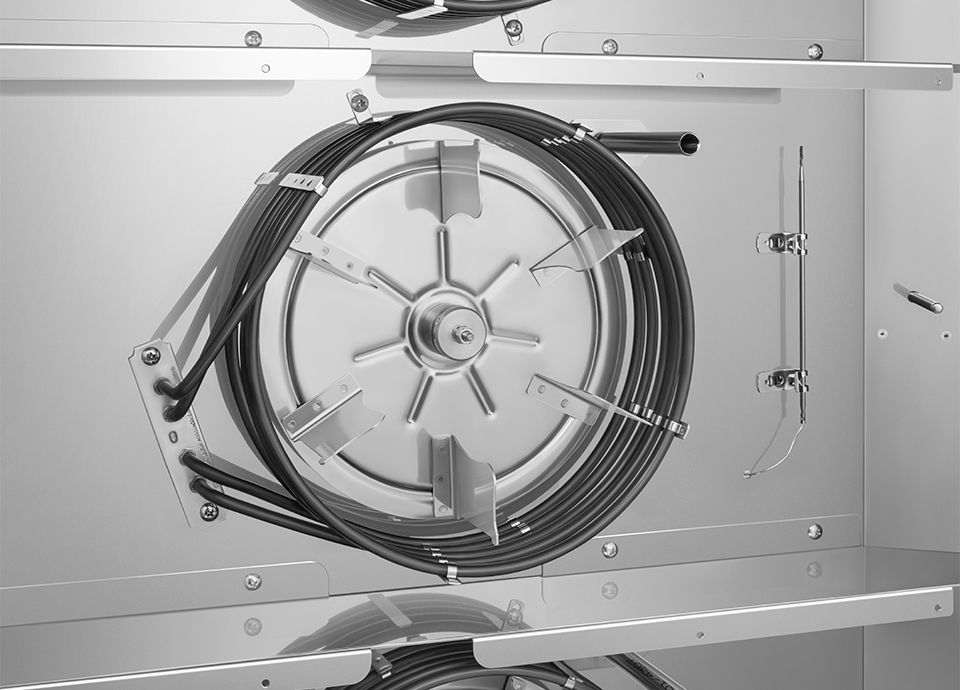

Fan type and number:
2 contrarotating with timed direction reversal
Fan motor power:
200W
Engine rpm:
Dual speed
Water injection on each fan:
Yes
Humidification levels:
5 + manual
Exhaust position:
Back
Timer type:
Electrical
Temperature range:
30-270°C
Safety switch with open door:
Yes
Predisposition for core probe:
Yes
USB port:
Yes
IPX protection:
IPX3
Logistic Information
Net weight:
63.000 kg
Width:
798 mm
Depth:
747 mm
Height:
563 mm
Gross volume:
115,6 lt
Packed width:
960 mm
Net volume:
104,2 lt
Packaged depth:
845 mm
Handle type:
Fixed
Height (mm) packed:
640 mm
End cooking signal:
Yes
Gross weight (kg):
71.000
Manual reset safety thermostat:
Yes
Type of packaging:
Cardboard
Removable deflector:
Yes
Packaging composition - paper & cardboard (kg):
2.761 kg
Packaging composition - polystyrene (kg):
0.355 kg
Lighting:
2 Halogen lamps
Packaging composition - wood (kg):
8.154 kg
Packaging composition - plastic (kg):
0.661 kg
